Square Opening Minting Gratings-Welded Steel Grating Common Sizes
Custom steel grating refers to steel grating panels specifically designed and manufactured to meet a customer's unique requirements and specifications. This type of grating offers a plethora of customization options, including:
Material: Custom steel grating can be crafted from a variety of materials, including carbon steel, stainless steel, and aluminum. The material selection hinges on factors such as corrosion resistance, strength requirements, and environmental conditions.
Bar Type and Size: The spacing, height, and width of the bearing bars and crossbars can be tailored to meet distinct load-bearing demands. Depending on slip resistance needs, one can choose between different bar types, like serrated or smooth.
Panel Size and Shape: The grating panels' dimensions and shapes can be customized to align with the installation area. Customized panel sizes ensure an exact fit, reducing the need for extensive cutting or welding on-site.
Surface Treatment: To enhance durability, counteract corrosion, or amplify slip resistance, custom steel grating can undergo various coatings or finishes. Some of the available options encompass galvanization, powder coating, and painting.
Accessories: Custom steel grating can be augmented with additional features such as kick plates, handrails, or integrated drain holes, ensuring it meets specific functional or safety standards.
For example:
Standard open bar steel gratings panels are 20' long pieces, we also supply step bars cut to size. Maximum length available for stainless steel is 120".
Grate, Steel
| Width | Height | Thickness |
| 1-1/16" | 1-1/4" | 1/8" |
| 1-7/8" | 1-1/4" | 1/8" |
| 2-5/8" | 1-1/4" | 1/8" |
| 3-1/2" | 1-1/4" | 1/8" |

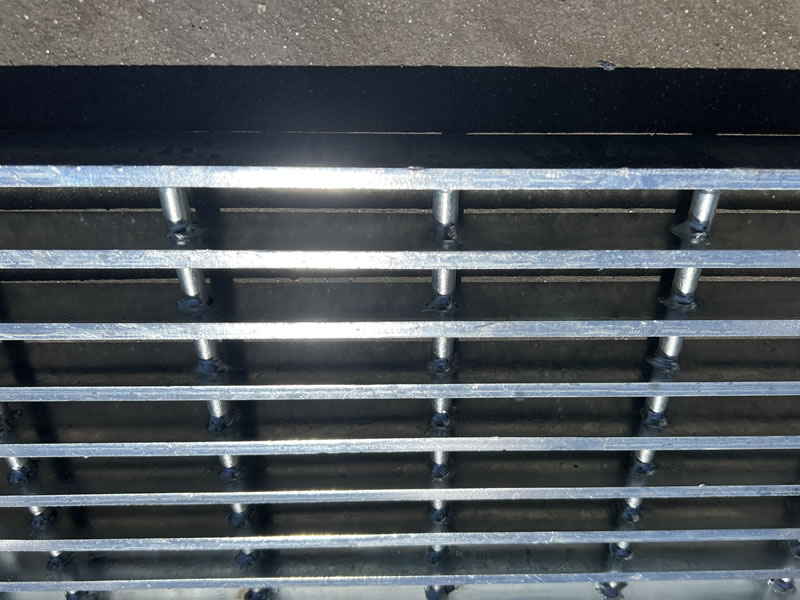

Welded Steel Grating Common Sizes:
Pitch of Bearing Bar
A center distance between the two bearing bars adjacent to each other.
Common pitch : 30mm & 40mm
Other : 12.5mm, 15mm, 25mm, 60mm
Pitch of Cross Bar
A center distance between the two cross bars adjacent to each other.
Standard pitch : 50mm & 100mm.
Difference spacing of bearing bar & Cross bar can also be manufacture upon request.

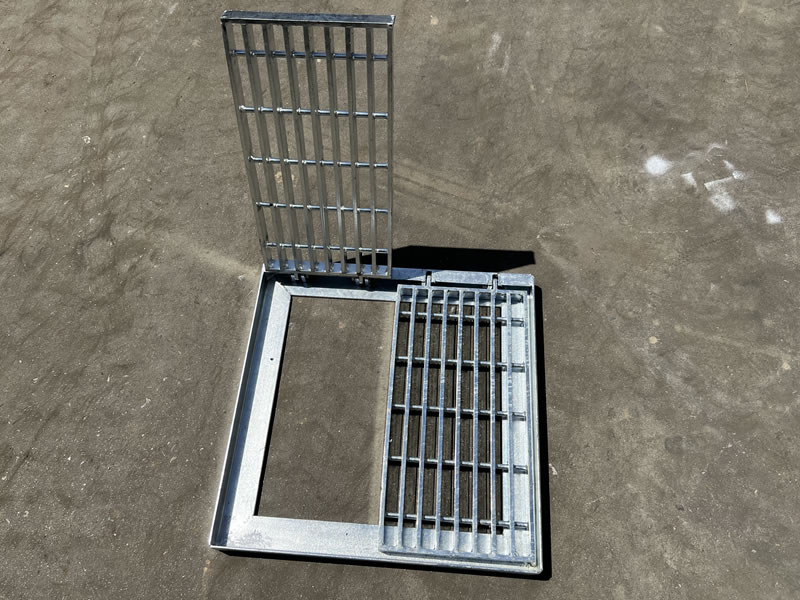

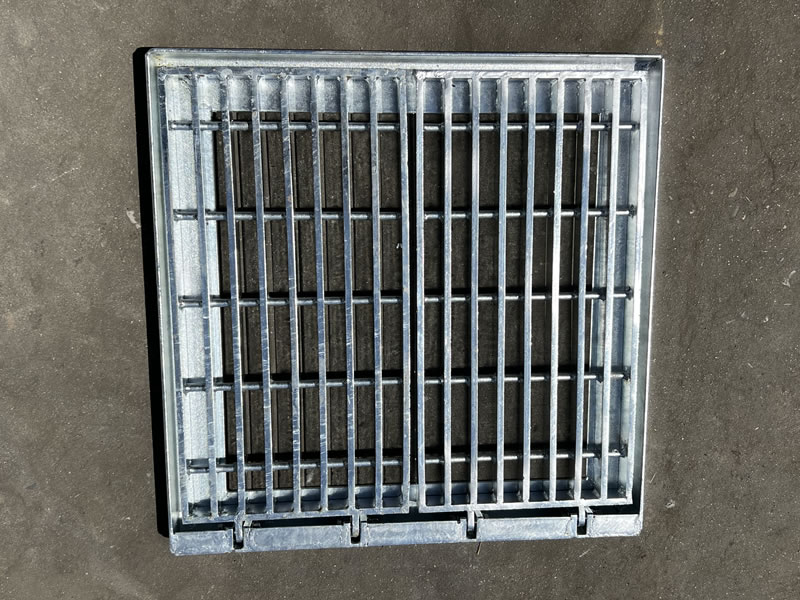

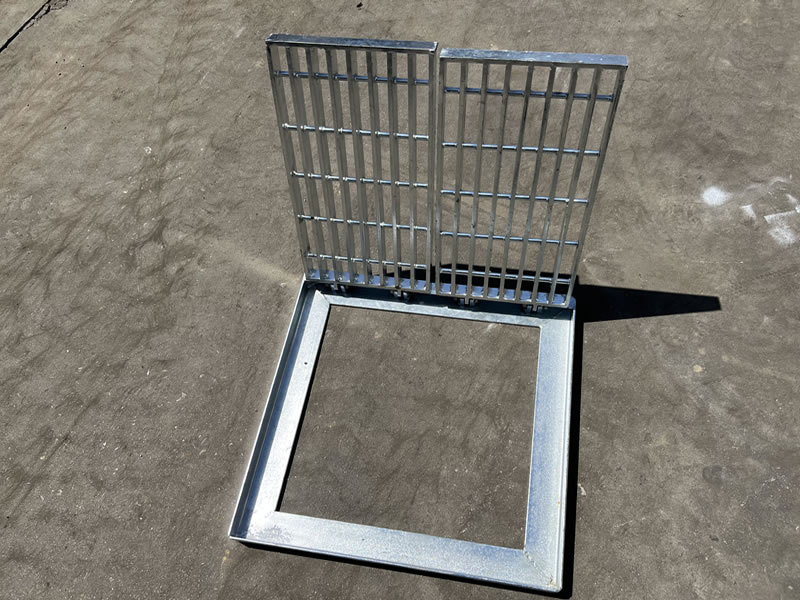

Square Opening Minting Gratings
Frame: 32x3

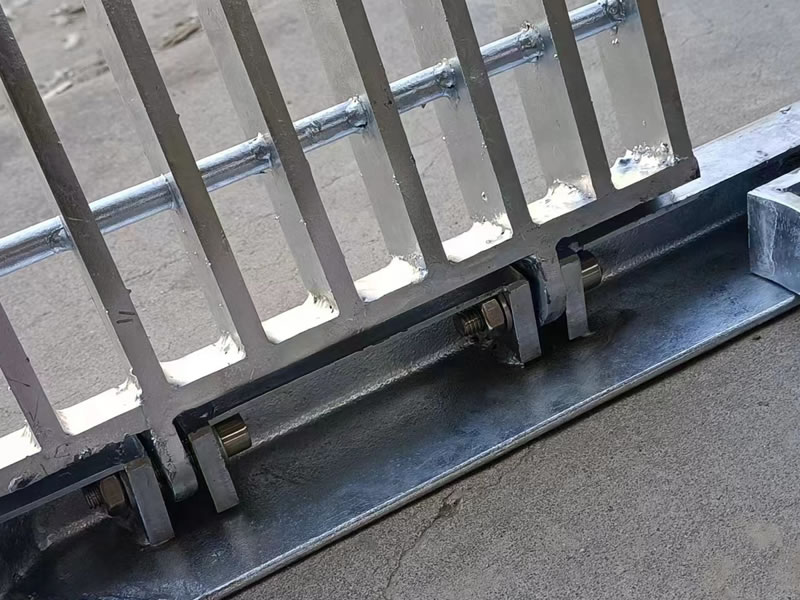

All support bar, cross bar and side frame are welded
DIN 24535 Industrial Standard
Supporting bar: 1062mm +0/-4
Cross bar: 490mm+0/-4
Fabric: 30x30
Supporting bar material: 32x3
Cross bar material: 6x6 twisted steel
Grating lattice: 32mm height
Material: Steel, Galvanized
Load: 1025 kg/m2
By providing these customization options, custom steel grating offers a solution meticulously tailored to the distinct needs of any given project or application. This guarantees peak performance, longevity, and safety across diverse industrial, commercial, and architectural landscapes.
