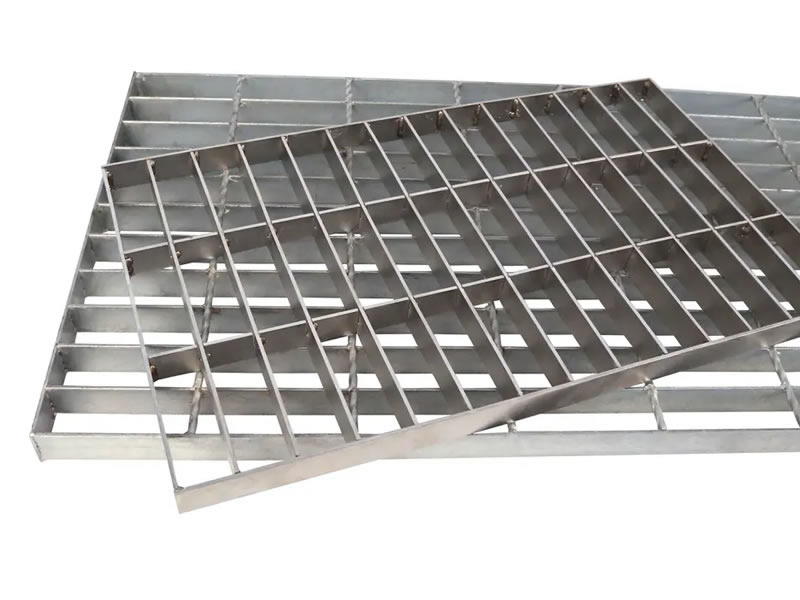

Stainless Steel Grating Panel Sizes to Finishes and Designs

Stainless steel grating, made of stainless steel, undergoes a production process similar to regular steel grating. However, instead of corrosion prevention treatments like spray painting or hot-dip galvanizing, its surface is polished to eliminate welding residues.

Materials

Available in materials such as 304, 316, 316L, 310, and 310S, stainless steel gratings offer excellent corrosion resistance and strength, suitable for varied settings.

304 stainless steel grating is popular due to its corrosion resistance and versatility.
316 and 316L variants excel in marine projects like offshore platforms and ships because of their high-temperature and corrosion resistance.
310 and 310S gratings are ideal for high-temperature equipment, given their resistance properties.
The choice of material affects price and application range, so it's crucial to choose based on specific needs. Ensuring quality and safety means opting for manufacturers with top-notch technology and stringent quality controls.

Surface Treatment

Pickling and passivation result in a matte gray-white finish.
Electrochemical polishing produces a brighter, higher-finish surface.
Heating, followed by electrochemical polishing and chrome plating, achieves a mirror-like effect.
All treatments necessitate preliminary shot blasting.

Classification:

Our stainless steel gratings are classified into:

Standard Panels: Ideal for general applications, these are readily available in various dimensions.
Heavy-Duty Panels: Enhanced thickness for higher load-bearing capacities, perfect for industrial applications.
Decorative Panels: Tailored for aesthetic applications, merging functionality with design.

Applications

Environments needing acid and alkali corrosion resistance, e.g., coastal regions and chemical plants.
Settings emphasizing hygiene, such as disinfection and pharmaceutical plants or food processing units.
Locations prioritizing aesthetic appeal, like curtain wall structures, shopping centers, and viewing platforms.
Stainless steel grating is essential in environments demanding high anti-corrosion standards such as food processing, shipbuilding, petrochemicals, and wastewater treatment, mirroring the selection criteria of carbon steel gratings.

Structures:

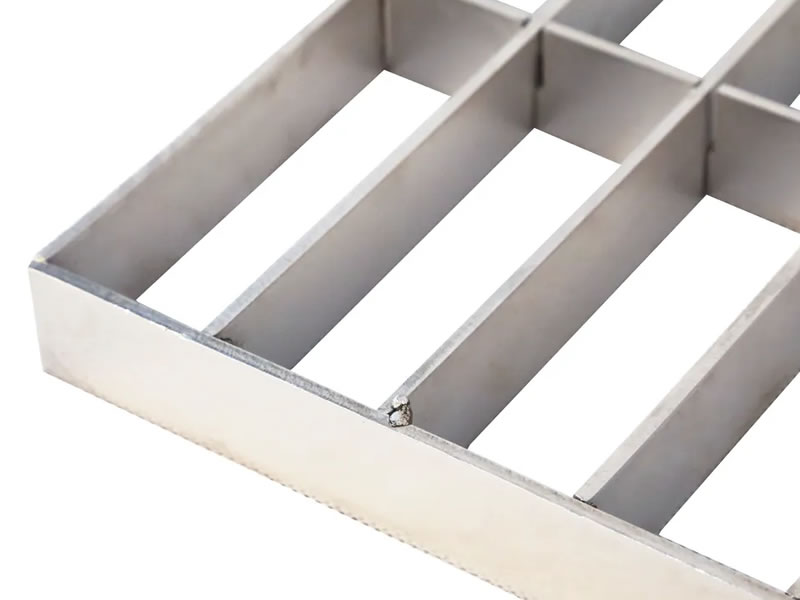

Plain Surface: Smooth and devoid of any patterning, suitable for pedestrian areas.

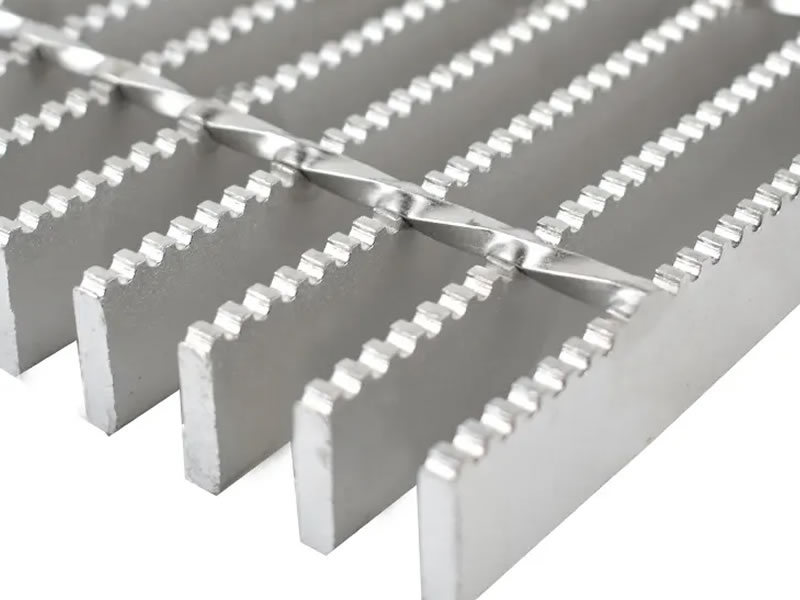

Serrated Surface: Notched for extra grip, this design is optimal for slippery environments or areas prone to oil or moisture.
Interlocking: Designed for easy assembly and providing additional structural integrity.

Customized Product Specifications:

Understanding the diverse needs of our clients, Weihao Co. offers customization options to meet unique project requirements. From specific load-bearing capacities, panel sizes, to finishes and designs, our in-house team collaborates closely with our clients to deliver gratings tailored to precise specifications.

Stainless Steel Gratings

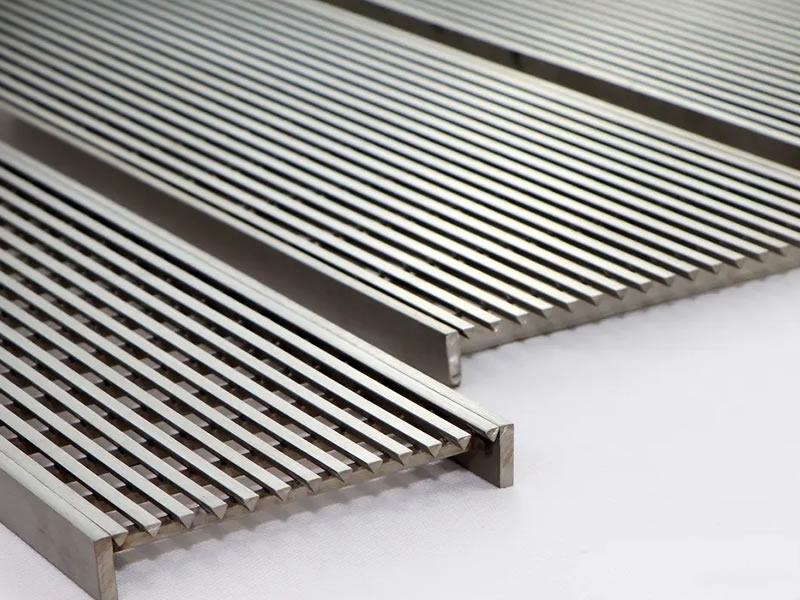

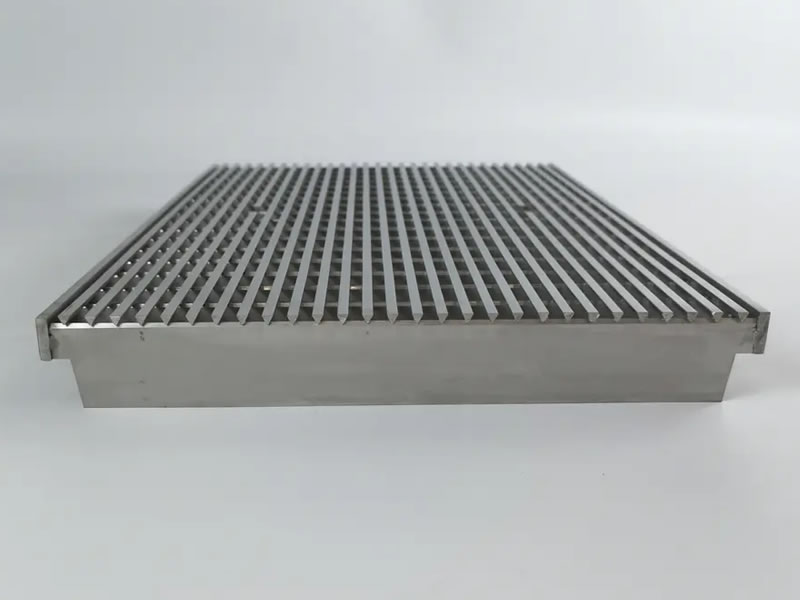

Stainless Steel 304 Grating
Material: SS 304
Panel width: 95mm
Length: 1000mm
Height: 20mm
Distance between Each Ribs: 10mm
Load Carry capacity: 1000Kgs

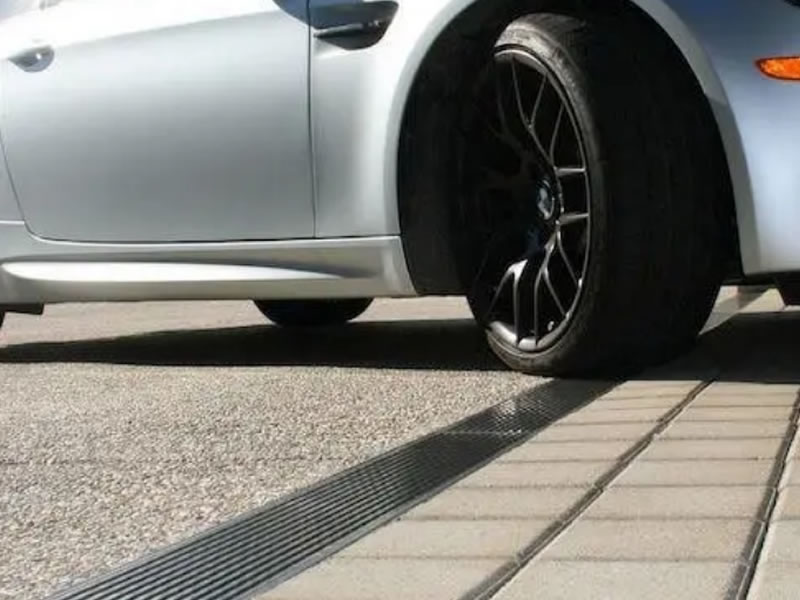

Application: Grating for the Run of Water Drainage.
Usage: Outdoor & Indoor use.

Stainless Steel Grating, SS 316
Oil Field Flooring Grating:
Grating type: Flooring grate,4' x 8', 316l ss, pitch 25m
Grating, type: Flooring panels,4' x 8', 316l ss, pitch 25mm x 100mm x 5mm serrated,astm standard
Clip: grating, 316l ss, w/m 12mm mild steel bolt, nut and washer

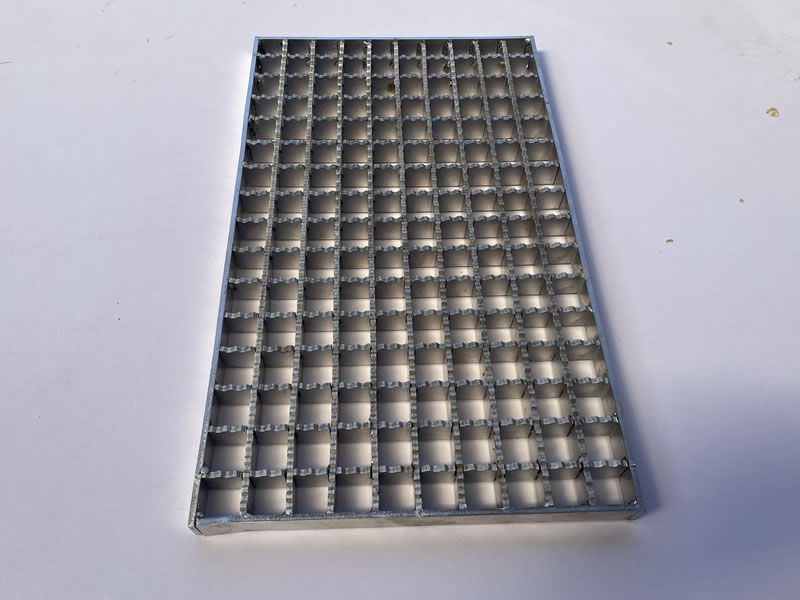

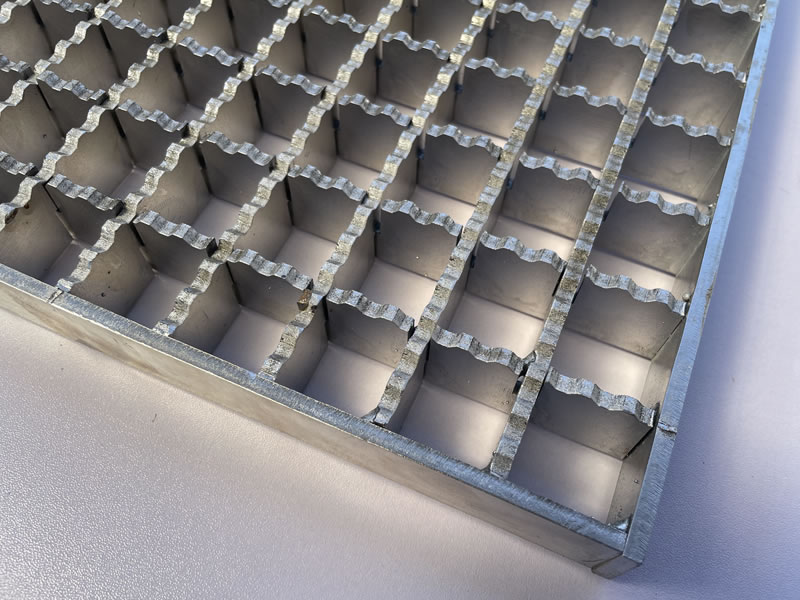

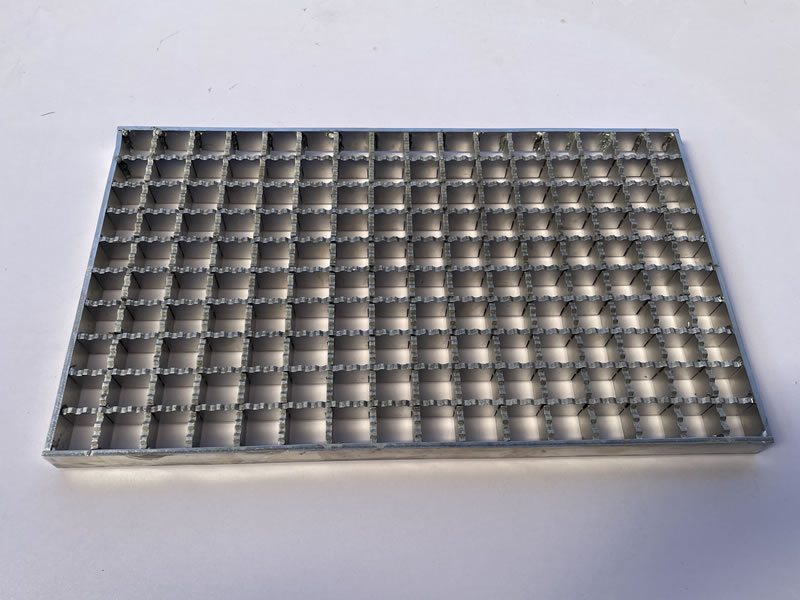

Stainless Steel Bar Grating in Grade 316L and 316

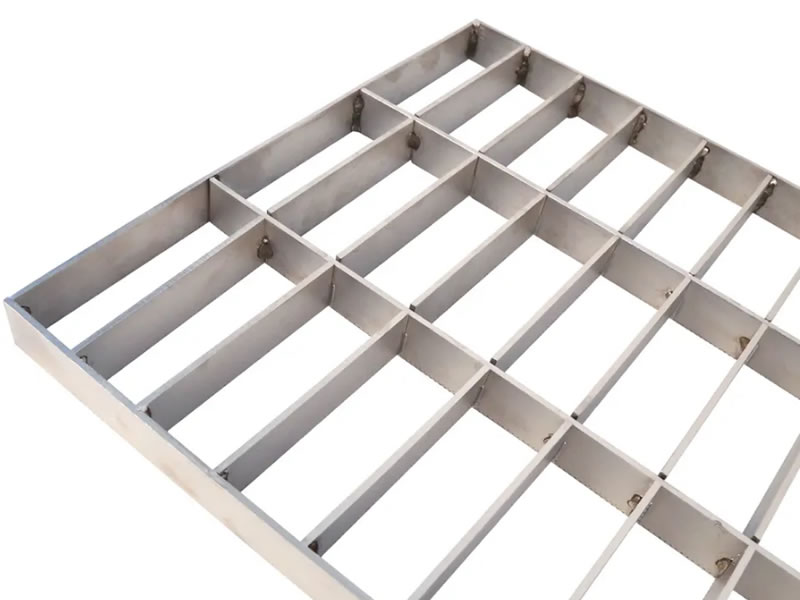

Press Locked Stainless Steel Flat Bar Grating, 316L and 316 SS Grade
Finishing: Natural ss
Panel size: length= 2750mm, panel width= 1000mm.
Type of grating: Press-locked stainless steel flat bar grating.
Bearing bars size: flat bars= 8mm/thickness x 40mm/ width
Size of the square opening from inside on all sides: 40mm x 40mm
Clear opening : 40mm x 40mm
Bearing bar depth : 40mm.
Without structural supports.
