I Bar Steel Grating-An Extruded Bearing Bar Having a Cross Sectional Shape Resembling The Letter "I"

I Bar Steel Grating, characterized by its unique "I" shaped cross-section bars, offers a robust grating structure. These individual bars are welded perpendicular to the support load bars at consistent intervals.

Advantages

• High Strength: Its design ensures optimal load-bearing capacity, ideal for heavy-duty areas and high foot traffic zones.
• Efficient Drainage: Its open structure prevents water accumulation, ensuring a dry surface.
• Slip Resistance: The serrated I bars improve traction, heightening safety.
• Durability: Crafted from premium steel, it resists corrosion and suits both indoor and outdoor settings.
• User-Friendly: Its modular and lightweight design simplifies installation and maintenance.

Applications

Ideal for industrial sectors, commercial establishments, and transport infrastructures, the I Bar Steel Grating is indispensable wherever durability, slip resistance, and efficient drainage are paramount. Commonly, it serves as the preferred choice for walkways, platforms, stair treads, and catwalks, guaranteeing a secure and robust surface.

Specifications

Our I Bar Steel Grating stands out with its distinct "I" shaped cross-sectional bars. These bars are systematically welded perpendicular to the primary load bars, ensuring a structurally sound grating formation. The precise arrangement offers optimal load-bearing capacity, making the grating both robust and reliable.

Material

Mild Carbon Steel Bars: The load bearing bars can be produced from steel which conforms to the following equivalent standards: JIS G3101 SS400 or ASTM A36 or equivalent. Mild carbon steel material provides an economical, high strength for uses in most industrial and commercial applications.

Type

Understanding diverse industry needs, Weihao Co. offers the I Bar Steel Grating in multiple types, taking into account different serration patterns, bar thicknesses, and grid patterns. Each variant is designed keeping in mind specific application requirements, ensuring a tailored fit for every project. An extruded bearing bar having a cross sectional shape resembling the letter "I". Grating bars can be supplied natural metal finish, allowing quick delivery to customers whom fabricate and galvanize the grating on their own.

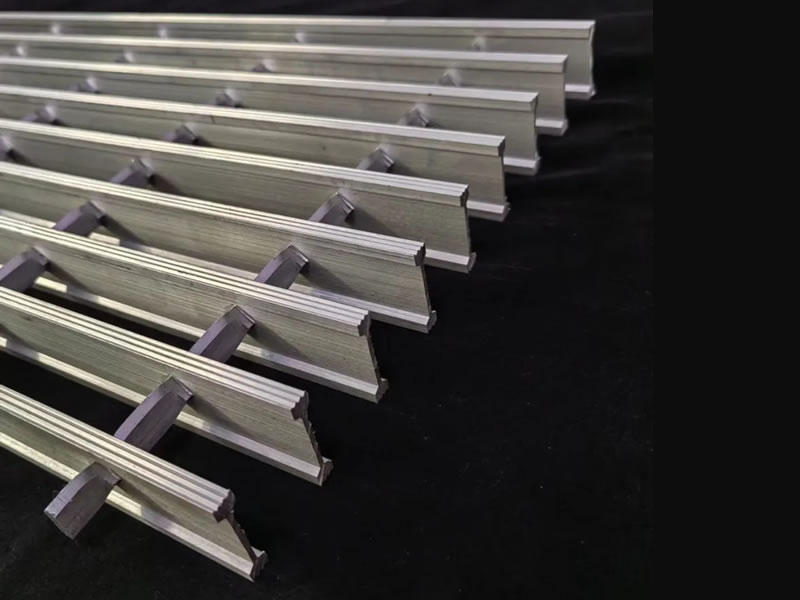

IBSG-1 I Bar Steel Grating

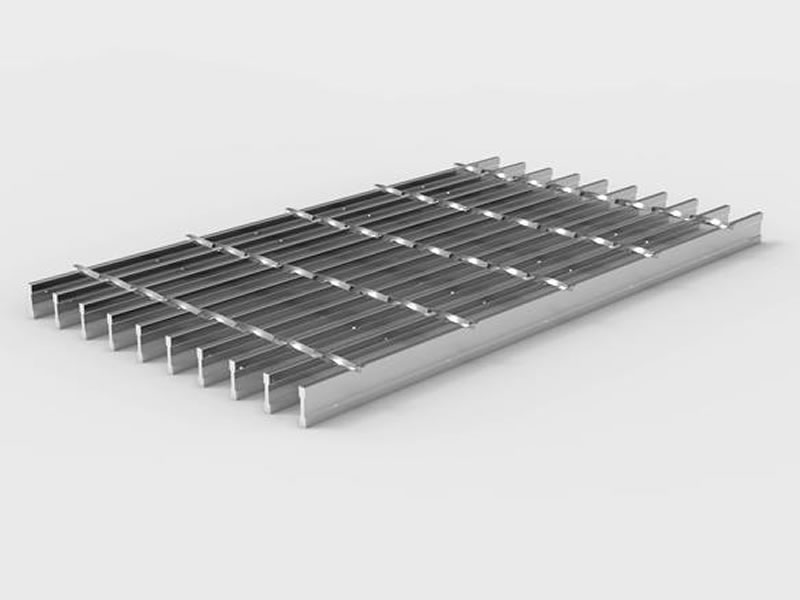

IBSG-2 Steel Bar Grating Flooring

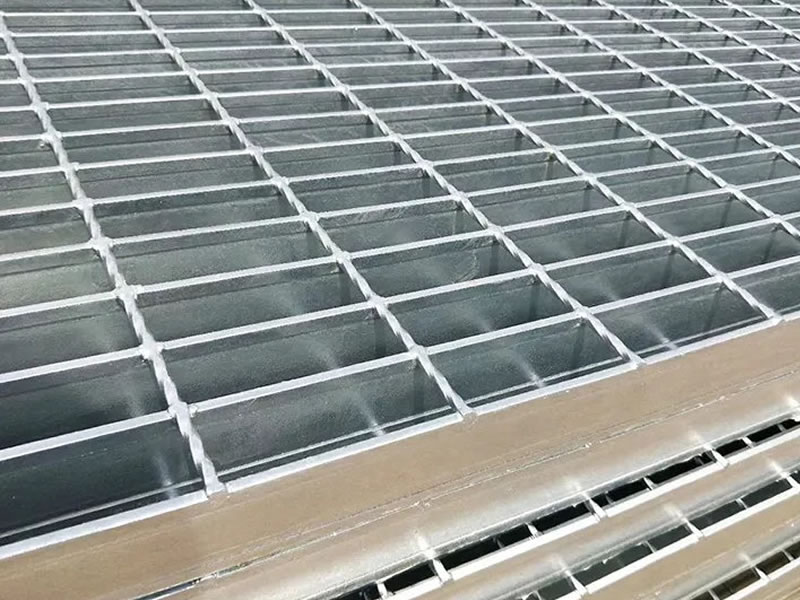

IBSG-3 Galvanized Steel Bar Grating
